Windows Password

Windows stores user credentials in the Security Accounts Manager (SAM) database located at C:\Windows\System32\config\SAM, which is locked while Windows is running. Passwords are stored as hashes using algorithms like NTLM or NTLMv2.

Modern Windows systems add extra protection using the Data Protection API (DPAPI). For domain-joined computers, passwords may also be stored in the Active Directory database on domain controllers.

Windows Authentication Process

1. Initial Login Process:

   • WinLogon.exe (uses Secur32.dll) interacts with LogonUI, which connects to the Credential Provider.
   • LogonUI returns credentials to WinLogon.exe.
   • WinLogon.exe calls lsass.exe which uses Lsasrv.dll.

2. Authentication Paths:

   • For Local/Non-Domain Joined systems:

     • Authentication Packages process credentials.
     • NTLM (using Msv1_0.dll) authenticates against SAM.
     • SAM (using Samsrv.dll) retrieves account information from the Registry.

   • For Remote/Domain Joined systems:

     • Authentication Packages process credentials.
     • NTLM (using Msv1_0.dll) or Kerberos (using Kerberos.dll) protocols are used.
     • Netlogon (using Netlogon.dll) communicates with AD Directory Services (using Ntdsa.dll).

3. Post-Authentication:

   • WinLogon.exe calls CreateDesktop().
   • User profile is loaded.
   • Registry settings are applied.
   • userinit.exe launches explorer.exe.

LSASS

The Local Security Authority Subsystem Service (LSASS) is a process in Windows that is responsible for enforcing the security policy on the system.
The lsass.exe file used by Windows is located in the %SystemRoot%\System32\Lsass.exe.

Link to original

SAM

The Security Account Manager (SAM) is a Windows database file that stores user passwords for authenticating local and remote users. It’s located at %SystemRoot%/system32/config/SAM and mounted on HKLM/SAM. Viewing it requires SYSTEM level permissions.

Link to original

NTDS

Domain-joined Windows systems send logon requests to Domain Controllers (DC) in the same Active Directory forest. Each Domain Controller hosts an NTDS.dit file, which is synchronized across all DCs except Read-Only Domain Controllers. It’s typically stored at %SystemRoot%\ntds.dit.

Link to original

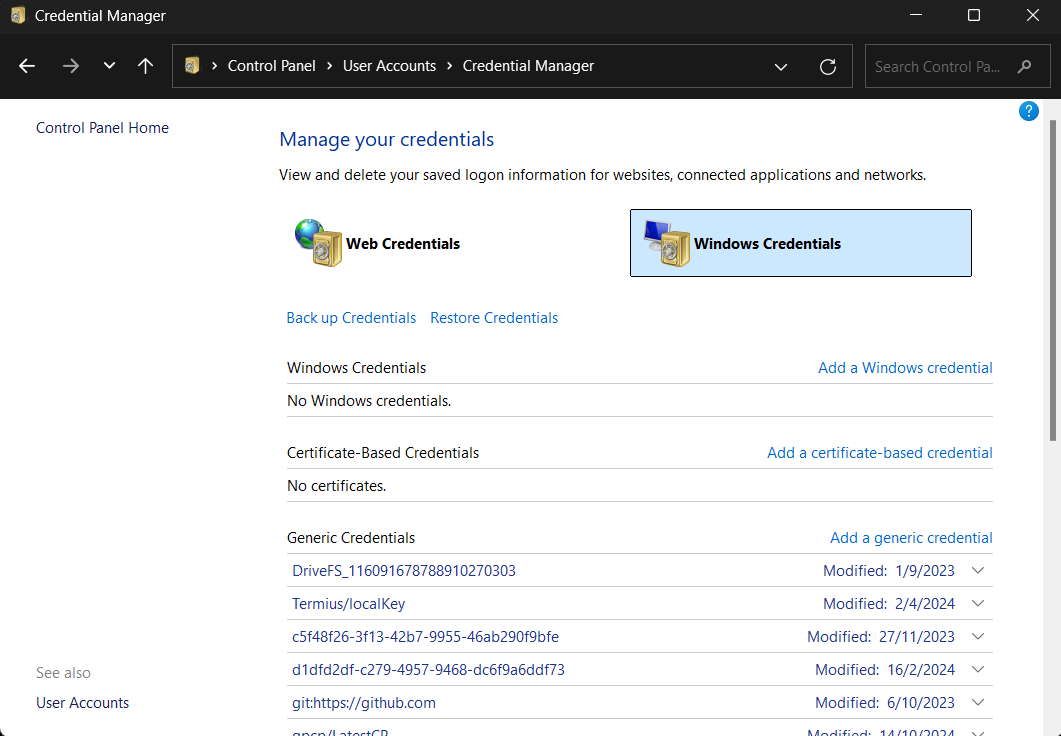

Credential Manager

Credential Manager is a built-in Windows feature that allows users to save both Windows and Web credentials. These saved credentials are stored in each user’s Credential Locker, organized by user profile.

The credentials are encrypted and stored at:

C:\Users\[Username]\AppData\Local\Microsoft\[Vault/Credentials]\
